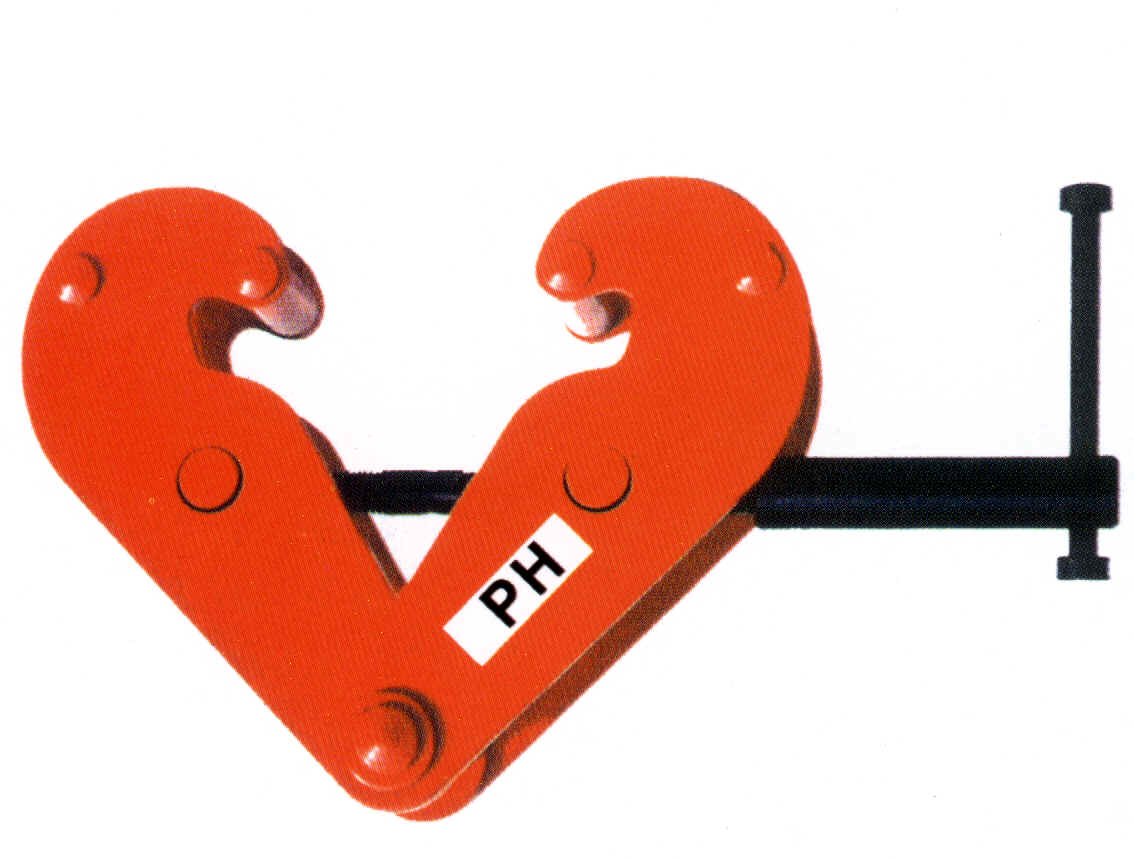

PH BEAM CLAMP
| Model | BC-1 | BC-2 | BC-3 | BC-5 | |
| Rated Load | (kg) | 1000 | 2000 | 3000 | 5000 |
| Flange Width | (mm) | 75-220 | 75-220 | 80-320 | 80-320 |

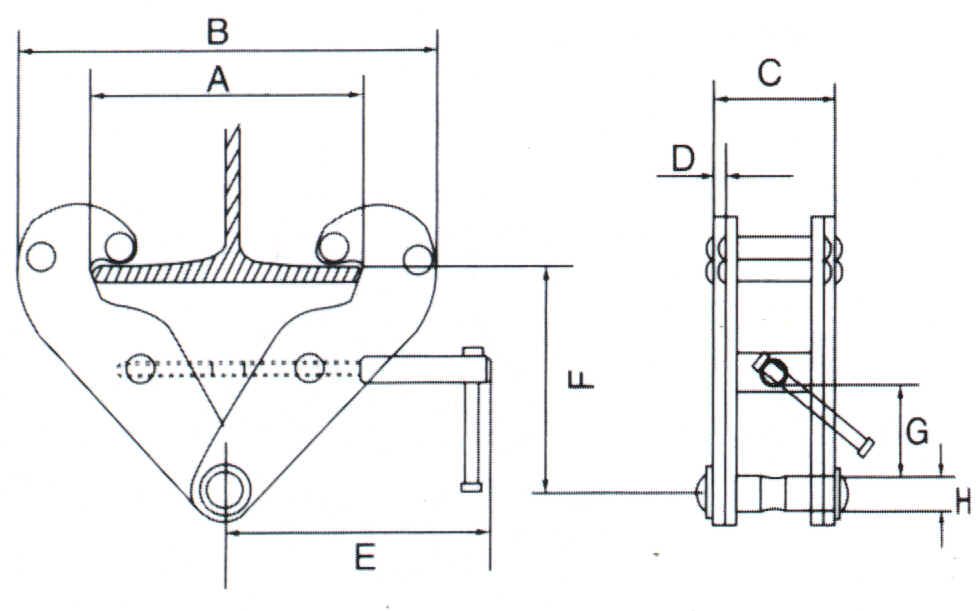

| Dimensions | (mm) Max.A | 260 | 260 | 345 | 345 |
| (mm) Min.B | 180 | 180 | 235 | 235 | |
| (mm) Max .B | 360 | 360 | 490 | 490 | |
| (mm) C | 64 | 74 | 103 | 110 | |
| (mm) D | 5 | 6 | 8 | 10 | |
| (mm) E | 215 | 215 | 260 | 260 | |
| (mm) Max.F | 155 | 155 | 225 | 225 | |
| (mm) Min. F | 102 | 102 | 140 | 140 | |
| (mm) Min. G | 25 | 25 | 45 | 45 | |
| (mm) H | 22 | 22 | 24 | 24 | |
| Net Weight | (kg) | 4.5 | 5 | 10.5 | 11 |
